Impact test
Requesting Main Industry : Design and Manufacture of Impact Testing Machines
Request for measuring the impact force with high accuracy
Problems we had
Though the impact force is desired to be measured by the load sensor of the foil gauge type, it could not be measured with high accuracy because of insufficient response. Also, I would like to evaluate if there is a difference in impact force due to the difference in materials.
Solving Problems
100mm drop wave form
Plastic hammer
It was found that the magnitude and the oscillation components change when the iron ball is dropped from the height of 100mm and when the pressure receiving plate is tapped with a plastic material. Piezoelectric sensors are highly responsive and have high rigidity, enabling high-precision measurement of impact loads during drop tests.
Introduced equipment
Sensor Related Products

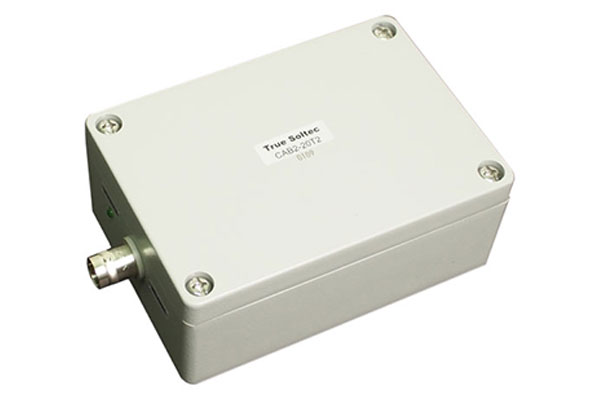

Charge Amplifier for Piezoelectric Sensor
